Skylight Windows Plans: Architectural Blueprints, Structural Framing, and Flashing Protocols

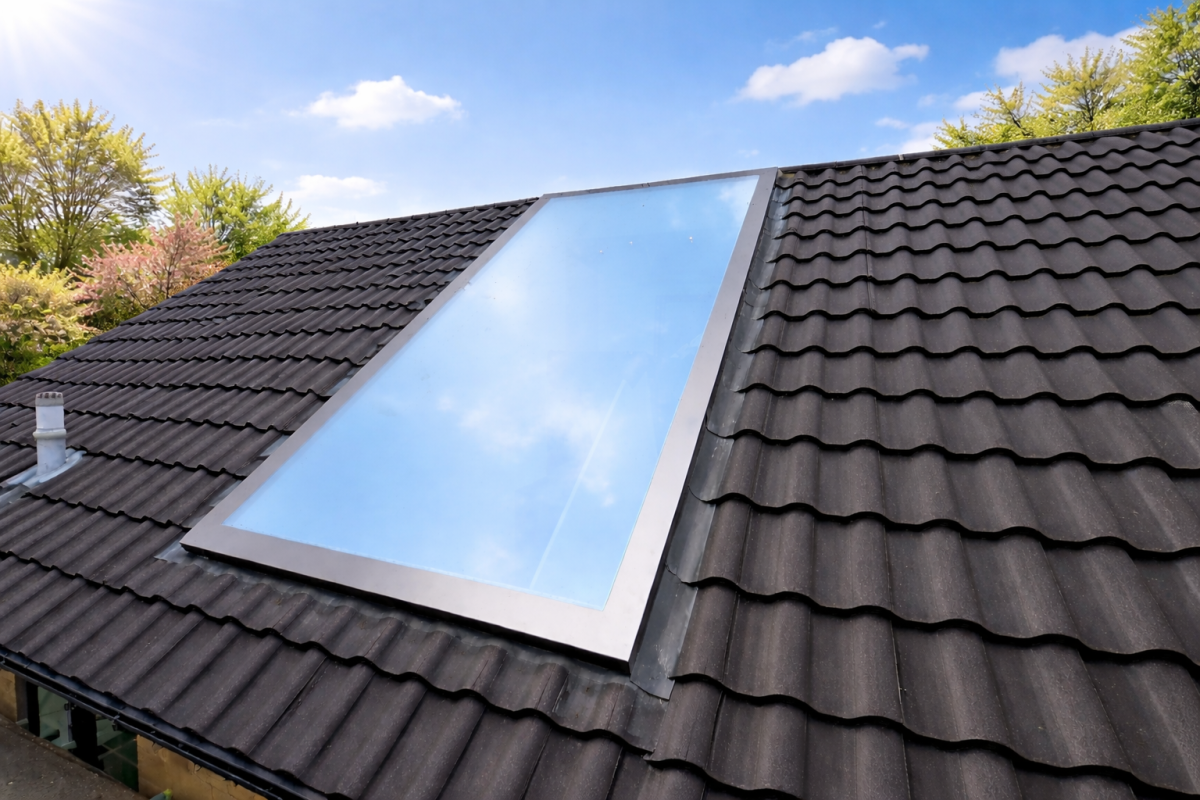

Daylighting architecture fundamentally changes the internal environment of a building through direct overhead illumination. Piercing a roof membrane introduces natural light while creating structural challenges regarding load distribution. Skylight Windows Plans. Overhead apertures expose interior spaces to solar radiation, wind uplift forces, and water penetration. Designers must treat roof windows as complex structural assemblies that require precise planning.
Developing architectural drawings involves calculating thermal performance, structural header spans, and flashing details. Every roof penetration alters the load path of rafters and trusses. Proper reinforcement prevents ceiling sagging and roof deflection over time. Integrated flashing systems divert rainwater away from vulnerable joints across all weather cycles.
This comprehensive guide analyzes roof fenestration through structural engineering, material physics, and construction planning standards. Detailed evaluations cover framing categories, flashing protocols, and building code compliance.
Understanding Skylight Windows Plans
Developing comprehensive skylight windows plans requires aligning structural geometry with internal daylighting goals. Builders frequently treat roof penetrations as simple carpentry tasks, yet overhead installations involve complex load redistribution. Cutting through structural rafters interrupts the continuous transfer of dead and live roof loads. Architects must design double headers and sistered joists to reroute weight around the aperture safely.
Oversimplification Hazards in Framing
Oversimplifying structural plans often leads to severe roof sagging and chronic water leaks. Standard wall windows rest on vertical studs that transfer loads directly to the foundation. Sloped roof windows sit within angled assemblies subjected to intense wind uplift and snow loads. Inadequate header sizing causes framing deflection, which breaks perimeter glass seals and allows water infiltration.
Envelope Continuity and Thermal Bridging
Envelope continuity depends on maintaining unbroken insulation and air barriers around the rough opening. Cold exterior air chills exposed framing members, triggering interior condensation during winter months. Proper installation details include wrapping light shafts in high-performance insulation and vapor-permeable membranes. Integrated thermal breaks prevent heat loss and protect interior drywall from water damage.
Historical Evolution of Roof Fenestration
Overhead daylighting evolved from ancient masonry apertures designed for passive interior illumination. Classical builders utilized open roof oculi to admit daylight, though rain entered unimpeded into interior basins. The Industrial Revolution introduced cast-iron frameworks and early rolled sheet glass assemblies. Victorian railway stations and exhibition halls demonstrated the structural viability of expansive overhead glazing.
The Transition to Residential Units
Early residential roof windows relied on single-pane glass mounted in heavy iron or wooden frames. These early units transferred heat rapidly, generating heavy interior condensation during cold seasons. Moisture accumulated along framing ledges, promoting rot and fungal decay in surrounding timbers. Crude sheet-lead flashing pans managed water diversion with mixed results over seasonal cycles.
Modern High-Performance Assemblies
Modern engineering shifted toward insulated glass assemblies using warm-edge spacer bars and low-emissivity coatings. Thermally broken aluminum extrusions and high-density polyurethane cores now provide structural framing foundations. Integrated condensation channels and automated actuators transform roof windows into sophisticated environmental control units. Current designs meet rigorous energy codes while ensuring long-term structural durability.
Conceptual Frameworks and Structural Models
Evaluating overhead fenestration requires examining structural load paths, thermal transmission physics, and moisture migration pathways. Three engineering models govern sloped roof window design. Structural mechanics measure load distribution, thermodynamic conduction models heat flow, and psychrometrics predict condensation risks.
Load Redistribution and Rafter Alterations
Roof framing relies on continuous rafters or trusses to transfer dead loads downward to exterior walls. Cutting a rafter to install a roof window requires transferring loads to adjacent structural members. Installers insert double headers above and below the opening, supported by doubled trimmer rafters. This framing matrix safely redirects roof weight around the aperture without causing structural deflection.
Psychrometric Dew Point Management
Condensation risks multiply when warm, moisture-laden air contacts cold overhead glass surfaces. The dew point temperature is determined by relative humidity and ambient interior temperatures. Thermal breaks within the frame elevate interior surface temperatures above the critical condensation threshold. Integrated interior condensation gutters catch incidental morning dew and channel it harmlessly to the exterior.
Key Categories and Framing Variations
Selecting appropriate overhead hardware requires understanding how different mounting configurations interact with roof construction. Units vary across mounting profiles, power delivery methods, and mechanical opening geometries.
Deck-Mounted Versus Curb-Mounted Configurations
Deck-mounted units fasten directly to structural roof decking with low-profile integrated frames. These assemblies create a sleek aesthetic on steep roofs while minimizing exterior shadow lines. Curb-mounted units sit atop site-built wooden frames elevated several inches above the roof deck. The elevated curb provides clearance for roofing underlayments on low-slope applications, protecting vulnerable joints from standing water.
Power Mechanisms and Actuator Systems
Solar-powered venting units utilize integrated photovoltaic panels and internal battery packs to drive mechanical actuators. These self-contained units eliminate electrical wiring through attic framing, simplifying installation. Electric hardwired units connect directly to the building’s electrical distribution panel, providing continuous power for high-frequency cycling. Manual venting units utilize mechanical worm gears operated by extendable poles or hand cranks.
| Category | Typical Pitch Range | Actuation Method | Primary Application | Structural Complexity |
| Deck-Mounted Solar | 3:12 to 85° | 12V DC Solar Battery | Pitched residential roofs | Low (No wiring) |
| Curb-Mounted Solar | 0:12 to 60° | 12V DC Solar Battery | Low-slope roofs, snow zones | Moderate (Curb build) |
| Deck-Mounted Electric | 3:12 to 85° | 120V AC Hardwired | Smart home integration | High (Electrical run) |
| Curb-Mounted Electric | 0:12 to 60° | 120V AC Hardwired | Commercial, steep flat roofs | High (Electrical run) |
| Manual Deck-Mounted | 3:12 to 85° | Screw Jack Crank | Reachable cathedral ceilings | Low |
| Tubular Passive Vent | 3:12 to 60° | Static Damper | Small bathrooms, hallways | Low |
Architectural decisions depend on matching these functional categories to the specific constraints of the roof structure.
Detailed Real-World Scenarios Skylight Windows Plans
Real-world envelope design requires evaluating mechanical forces, local climate conditions, and room functions. Different structural environments introduce unique failure modes and performance requirements.
Cathedral Ceiling Living Room Retrofit
A vaulted living room ceiling creates an ideal environment for large-scale daylight harvesting. Installing multiple venting roof windows along the southern roof plane floods the interior with natural light. The framing plan requires installing engineered headers between ceiling joists to support the heavy glass units. Automated rain sensors protect the interior by closing sashes during sudden weather shifts.
Low-Slope Modern Flat Roof Addition
A low-slope roof over a contemporary addition requires careful curb detailing to prevent hydrostatic ponding failures. A minimum four-inch structural curb provides necessary clearance for continuous self-adhering modified bitumen underlayment. The metal flashing aprons overlap the roofing membrane to ensure unimpeded water drainage. The venting unit exhausts warm air during summer afternoons, reducing air conditioning loads across the main floor.
Multi-Story Stairwell Light Shaft
A multi-story stairwell acts as a natural vertical chimney that concentrates heat on the upper level. Installing high-performance venting fenestration at the roof peak creates an effective cooling flue. Opening lower ground-floor windows induces a strong cooling draft through the central core of the home. Motorized interior shades mitigate excessive solar gain during peak midday sun hours.
Planning, Cost, and Resource Dynamics
Financial planning for roof fenestration involves balancing initial equipment expenses against installation labor and structural modifications. Labor expenses often exceed the baseline cost of the hardware due to complex carpentry work.
Capital Allocation and Labor Factors
Total project investments encompass hardware procurement, structural framing modifications, electrical connections, and roofing repairs. Cutting structural rafters requires installing double headers and sister joists to transfer roof loads safely. Building an insulated light shaft through unconditioned attic spaces requires drywall hanging, finishing, and paint matching. Tax incentives for solar-powered hardware help offset installation costs.
| Component | Cost Range (USD) | Variance Factor | Labor Intensity |
| Hardware Unit | $450 – $2,400 | Motorization, glass coatings | Low |
| Structural Framing | $300 – $1,200 | Truss modification, joist doubling | High |
| Flashing & Roofing | $200 – $800 | Roof material type, pitch | Moderate |
| Light Shaft Finish | $400 – $1,500 | Shaft depth, insulation level | High |
| Electrical Rough-in | $150 – $600 | Distance to panel, solar vs wired | Moderate |
Evaluating architectural specifications requires balancing these interdependent financial and architectural elements.
Tools, Strategies, and Support Systems Skylight Windows Plans
Precision installation demands specialized tools, membrane underlayments, and diagnostic equipment. Standard hand tools alone cannot ensure long-term structural alignment or watertight flashing integration.
Acoustic Rain Sensors and Actuators
Acoustic rain sensors detect precipitation impacts and trigger automated sash closures before water penetrates the interior. Piezoelectric elements detect mechanical vibrations from raindrops, sending low-voltage signals to the motor controller. These automated systems protect hardwood floors and furniture during sudden weather shifts.
Self-Adhering Underlayment Membranes
Self-adhering high-temperature rubberized asphalt membranes form a secondary waterproof barrier around roof openings. The membrane bonds directly to structural plywood decking and turns up the vertical exterior frame walls. Fasteners penetrating the membrane seal tightly due to the viscous properties of the bitumen compound.
Thermal Imaging and Airflow Verification
Infrared cameras verify the continuity of the thermal envelope around the perimeter of the light shaft. Thermal bridging around uninsulated headers becomes apparent during cold-weather testing. Anemometers measure convective airflow velocities through the open sash, confirming stack ventilation efficiency.
Risk Landscape and Failure Modes
Roof fenestration operates in a demanding environment characterized by intense ultraviolet exposure and thermal cycling. Understanding failure pathways allows designers to avoid common detailing errors.
Insulated Glass Unit Seal Degradation
Insulated glass units experience continuous barometric pressure shifts and thermal expansion cycles. Perimeter polyisobutylene seals gradually lose elasticity, allowing moisture vapor to penetrate the gas-filled cavity. The internal desiccant matrix saturates over time, leading to permanent interior glass fogging. Specifying stainless steel spacers and dual-seal constructions extends service life.
Flashing Deterioration and Fastener Backout
Relying solely on topical sealants invites premature water infiltration as caulking compounds degrade under solar exposure. Engineered metal step flashing provides permanent water shedding by mechanically overlapping individual shingle courses. Fasteners driven through exterior metal aprons must allow for thermal movement without tearing the underlying waterproof membrane.
Governance, Maintenance, and Long-Term Adaptation Skylight Windows Plans
Long-term reliability depends on routine mechanical inspections, proactive cleaning, and periodic component adjustment. Establishing clear maintenance intervals preserves both waterproofing integrity and ventilation performance.
Semi-Annual Debris and Drainage Maintenance
Organic debris, such as pine needles and leaves, often collects behind the upper saddle flashing. These obstructions hold moisture against the metal joints, accelerating corrosion and diverting water beneath shingles. Clearing debris dams semi-annually preserves designed drainage pathways.
Mechanical Lubrication and Gasket Care
Motorized lift actuators and sash hinges require periodic inspection and lubrication with pure silicone spray. Petroleum-based lubricants must be avoided because they degrade synthetic EPDM rubber weatherstripping. Cleaning perimeter gaskets prevents dirt buildup from breaking the airtight seal.
Measurement, Tracking, and Evaluation
Validating fenestration performance involves tracking thermal efficiency, visible light levels, and air infiltration metrics over time. Standardized rating systems provide objective benchmarks for evaluating competing hardware options.
Thermal Transmission and Solar Heat Metrics
The National Fenestration Rating Council provides standardized metrics for evaluating overhead glazing assemblies. The U-factor measures total non-solar heat flow, with lower numbers indicating superior insulating performance. The Solar Heat Gain Coefficient indicates the fraction of solar radiation admitted through the glass. Optical selectivity is determined by comparing visible light transmittance to the solar heat gain coefficient.
Envelope Pressure Diagnostics
Blower door depressurization testing quantifies air leakage around closed venting sashes and framing joints. Smoke pencils detect micro-drafts around perimeter seals during pressure tests. Verifying airtightness ensures that passive stack ventilation does not degrade overall heating efficiency during winter months.
Common Misconceptions and Oversimplifications Skylight Windows Plans
Numerous persistent myths surround roof fenestration, leading homeowners to make poor architectural choices. Clarifying these technical points ensures realistic expectations for system performance.
Myth: Roof Penetrations Inevitably Leak
Properly installed roof windows remain watertight throughout the lifespan of the surrounding roofing material. Leakage problems almost always trace back to faulty flashing or inappropriate reliance on topical sealants. Engineered step flashing creates a durable water-shedding system that directs precipitation safely down the roof slope.
Myth: Overhead Windows Overheat Living Spaces
Early single-pane plastic domes admitted massive solar heat loads that strained air conditioners. Modern insulated glass units feature spectrally selective coatings that reject up to seventy-five percent of infrared heat. Operable sashes actively exhaust warm air, reducing cooling demands through natural buoyancy.
Myth: Rain Sensors Fail During Downpours
Modern piezoelectric rain sensors respond rapidly to initial raindrop impacts. Actuator motors close the sash before significant water enters the room. Internal rain gutters catch incidental drops during the brief closing sequence, draining them safely to the exterior.
Ethical, Practical, and Contextual Considerations
Building codes regulate overhead fenestration to safeguard building occupants from impact hazards and structural failures. The International Residential Code mandates impact-resistant laminated glass for overhead installations.
Safety Glazing and Structural Integrity
Sloped glazing faces risks from falling branches, hail, and maintenance foot traffic. Building codes require fully tempered exterior glass combined with laminated interior glass. If an impact breaks the unit, the laminated interlayer holds the glass fragments in place, preventing falling shards from injuring occupants below.
Regional Energy Code Compliance
Regional climate zones establish maximum allowable U-factors and solar heat gain coefficients. Cold northern climates demand low U-factors to minimize winter heat loss. Southern regions prioritize low solar heat gain coefficients to reduce peak cooling loads. Designing architectural specifications around certified assemblies guarantees local code compliance while optimizing operational efficiency.
Long-Term Architectural Specification Synthesis
Architectural success requires synthesizing structural constraints, thermal performance targets, and long-term maintenance protocols into a cohesive design. The choice between deck-mounted and curb-mounted configurations must align with roof slope and local weather conditions. Venting mechanisms should be matched to room humidity levels and ventilation objectives.
Proper installation practices protect the building envelope over decades of environmental exposure. Self-adhering membranes, step-flashing kits, and insulated light shafts work together to maintain thermal boundaries. Selecting durable hardware with high-performance optical coatings creates comfortable, naturally lit interiors without sacrificing energy efficiency. Incorporating detailed drawings into the early design phase ensures optimal natural ventilation, architectural elegance, and long-term envelope resilience.
